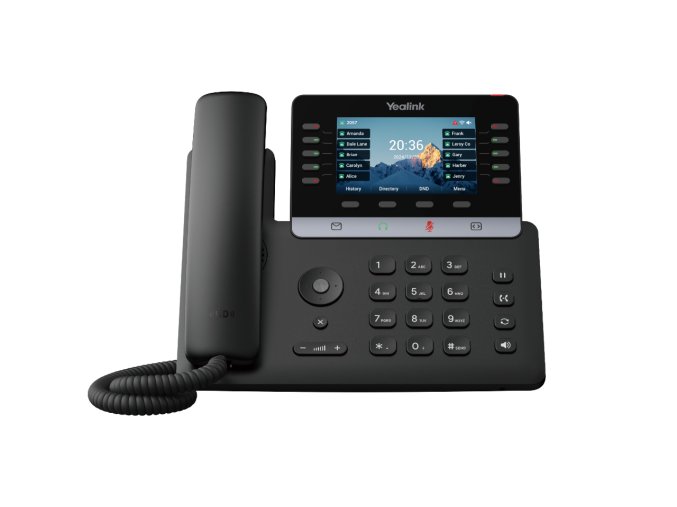

Yealink SIP-T74U
Popis
Yealink T74U je špičkový firemní telefon s barevným displejem, navržený speciálně pro manažery a profesionály. Nabízí modernější design a vysoce kvalitní TFT barevný displej, který uživatelům poskytuje živý vizuální zážitek. Nový design modelu Yealink T74U je elegantnější a štíhlejší, lépe odpovídá moderním estetickým standardům a současně zvyšuje výkon telefonu. To vám přináší větší flexibilitu v interoperabilitě a vyšší úroveň spolupráce. Telefon T74U využívá sluchátko s hallovým spínačem, které pomáhá vytvářet tišší kancelářské prostředí.
Kromě toho T74U nabízí ultra-vysokou kvalitu zvuku a podporuje širokopásmové audio kodeky, čímž zajišťuje realistický efekt hovorů. Telefon T74U podporuje rozhraní USB 2.0, což umožňuje použití USB náhlavních souprav i funkci USB nahrávání podle potřeby.
Klíčové funkce a výhody
-
Gigabit Ethernet
-
Řešení hardwarového šifrování TEE
-
Podpora až 16 SIP účtů
-
Podpora PoE
-
Podpora USB náhlavních souprav a EHS
-
Podpora rozšiřujících modulů s barevným displejem
-
Stojánek se 2 nastavitelnými úhly
-
Možnost montáže na stěnu
-
Sluchátko s hallovým spínačem
| Category | Specifications |
|---|---|
| Audio Features | HD voice: HD handset, HD speaker Hearing aid compatible (HAC) handset Acoustic Shield Smart Noise Filtering Audio codec: AMR-WB (optional), G.722 Narrowband codec: AMR-NB (optional), PCMU (G.711μ), PCMA (G.711A), G.723.1, G.729, G.729A, G.729B, G.729AB, G.726, iLBC DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO Full-duplex hands-free speakerphone with AEC VAD, CNG, AEC, PLC, AJB, AGC |
| User Interface | LCD screen 4.3-inch 480x272 resolution screen Support wallpaper and screen saver Incoming calls and unread message indicator lights Intuitive user interface Multilingual user interface Caller ID display of name, number, and photo Supports both dark and light themes |
| Phone Features | 16 VoIP accounts One-touch speed dial, hotline, mute, DND Call hold, call forward, call waiting, call transfer Group listening Emergency call Redial, call return, auto answer 10-way conferencing Direct IP call without SIP proxy Ring tone selection/import/delete Set date time manually or automatically Dial plan, action URL/URI XML Browser, XML Push RTCP-XR (RFC3611) Custom DSS Key Accessibility features |
| Directory | Local phonebook up to 1000 entries Blocklist XML/LDAP remote phonebook Google Contacts Smart dialing Contacts search/import/export Call history: All records/dialed/received/missed/forwarded calls |
| IP-PBX Features | Busy Lamp Field (BLF), Bridged Line Appearance (BLA) Anonymous call, anonymous call rejection Message Waiting Indicator (MWI) Voice messages, call park Call pickup, intercom, multicast Music on hold Call recording, mobile office, chief assistant Server-based recording function Visual mailbox user interface |
| Display and Indicator | LED for call and message waiting indication Account status information red and green dual color indicator light Intuitive user interface with icons and soft keys Multilingual user interface Caller ID with name and number Power saving |
| Feature Keys | 10 linekeys with LED keys (up to 50 dsskeys, 5 pages) 4 touch buttons: message, headset, mute, pagination (mute/headset/pagination button with indicator light) 4 function keys: call hold, call transfer, redial, hands-free 2 volume control keys 6 navigation keys |
| Interface | Dual-port Gigabit Ethernet 1 x USB 2.0 interface (phone side): - Supports Wi-Fi via WF50 - Supports Bluetooth via BT41 - USB flash drive - Connecting a USB headset - Connecting to the color screen expansion module - Wireless Headset Adapter EHS40 1 x Security keyhole 1 x RJ9 (4P4C) handset interface 1 x RJ9 (4P4C) headset jack 1 x 5V power port USB interface (compatible with 2.0): - Support Bluetooth headsets via BT51 - Supports connecting Yealink Bluetooth headset BH71/BH71 Workstation/BH71 Workstation Pro/BH72/BH76 via BT51 - USB recording - USB headset - Expansion module EXP55, can support up to 3 color screen expansion modules cascaded - Wireless Headset Adapter EHS40 Support USB or Bluetooth connection to Yealink CP900/CP700 and UH38, USB connection to UH34/UH36/UH37: - Basic functions: answer/end/mute call - Advanced functions: sound quality optimization, redial, call hold, volume adjustment, two-way synchronization, multi-way call control |
| Management | Configuration: browser/phone/auto-provision Auto provision via FTP/TFTP/HTTP/HTTPS for mass deployment Auto-provision with PnP Broadsoft device management Zero-Sp-Touch, TR-069 Phone lock for personal privacy protection Reset to factory, reboot Package tracing export, system log Support Yealink Device Management Platform (YDMP/YMCS) |
| Network and Security | IPv4/IPv6 SIP v1 (RFC2543), v2 (RFC3261) Call server redundancy supported NAT traversal: STUN mode Proxy mode and peer-to-peer SIP link mode IP assignment: static/DHCP HTTP/HTTPS web server Time and date synchronization using SNTP UDP/TCP/DNS-SRV (RFC 3263) QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP Support SRTP protocol Transport Layer Security (TLS 1.3) HTTPS certificate manager AES encryption for configuration file (AES256) Supported authentication mechanisms: MD5, SHA1, SHA224, SHA256, SHA384, SHA512 OpenVPN, IEEE802.1X, L2TP VPN LLDP/CDP/DHCP VLAN, ICE WPA2/WPA3 Secure boot GARP (Generic Attribute Registration Protocol) TEE hardware encryption solution |
| Other Physical Features | Operating environment humidity: 5% - 90% Operating temperature: -10 to +45 °C (+14 to 113 °F) Storage temperature: -30 to 70 °C Support PoE power supply (IEEE 802.3af), class 2 Power adapter (optional): AC 100-240V input, DC 5V/2A output USB output current: 5V/500mA Power consumption (PSU): 1.30 W - 1.50 W Power consumption (PoE): 1.516 W - 1.824 W Dimension (W x D x H x T): 235.0 mm x 167.5 mm x 214.8 mm x 55.1 mm |
| Package Features | Package content: - Yealink T74U IP phone - Handset with handset cord - Ethernet Cable (2m CAT5E UTP Cable) - Stand - Quick Start Guide - Power Adapter (Optional) - Wall Mount Bracket (Optional) Qty/CTN: 5 PCS N.W/CTN: 5.98 kg G.W/CTN: 6.656 kg Giftbox size: 258 mm x 247 mm x 99 mm Carton Meas: 515 mm x 254 mm x 274 mm |
